菱声音响文字转语音开发

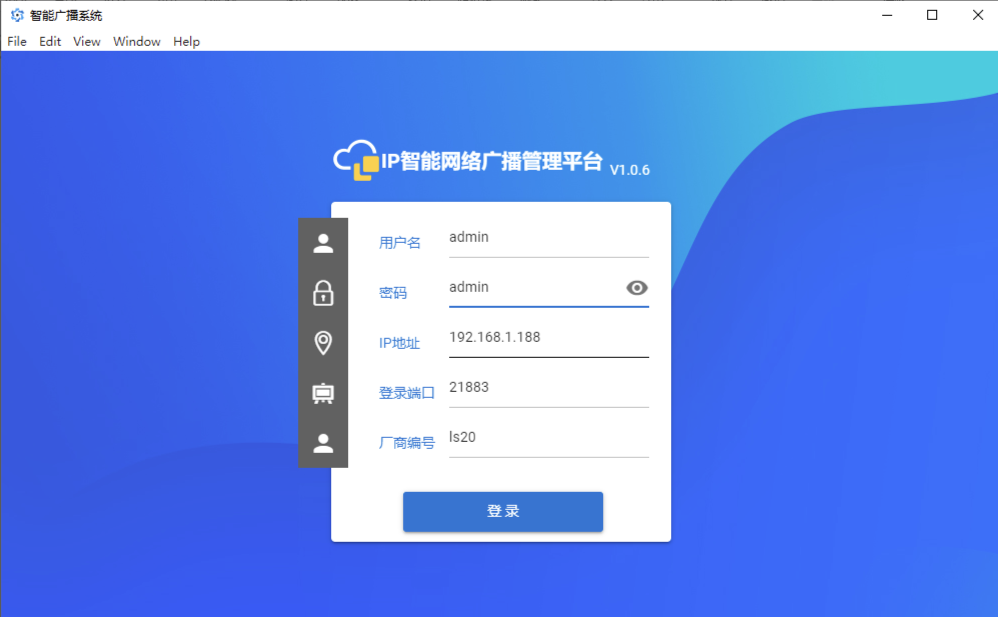

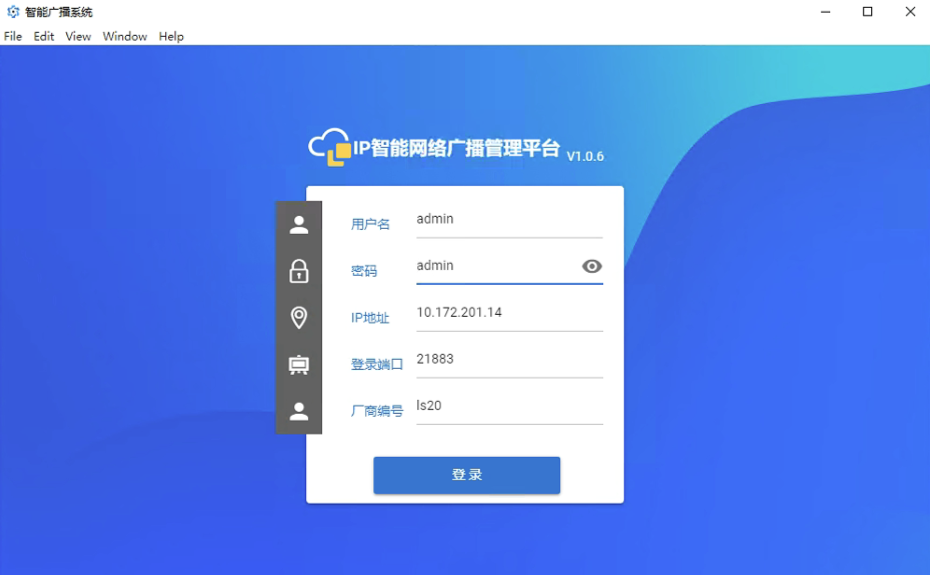

登录ip智能网络广播管理平台

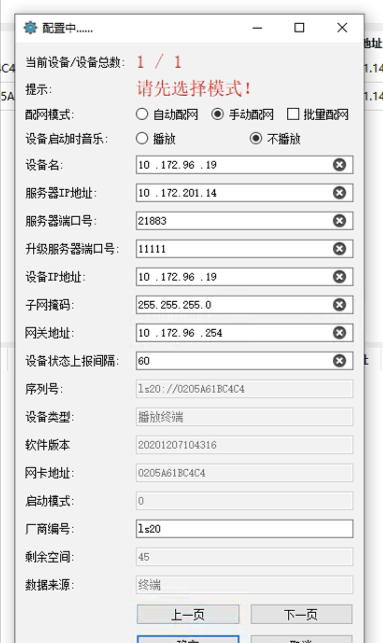

ip配置

服务器ip地址是指音响服务所安装的位置

服务器端口号是在服务所安装的电脑上使用的端口，一般默认21883

注意：设备的ip相关的设置。目前搜索软件不支持跨网段。

登录音响服务

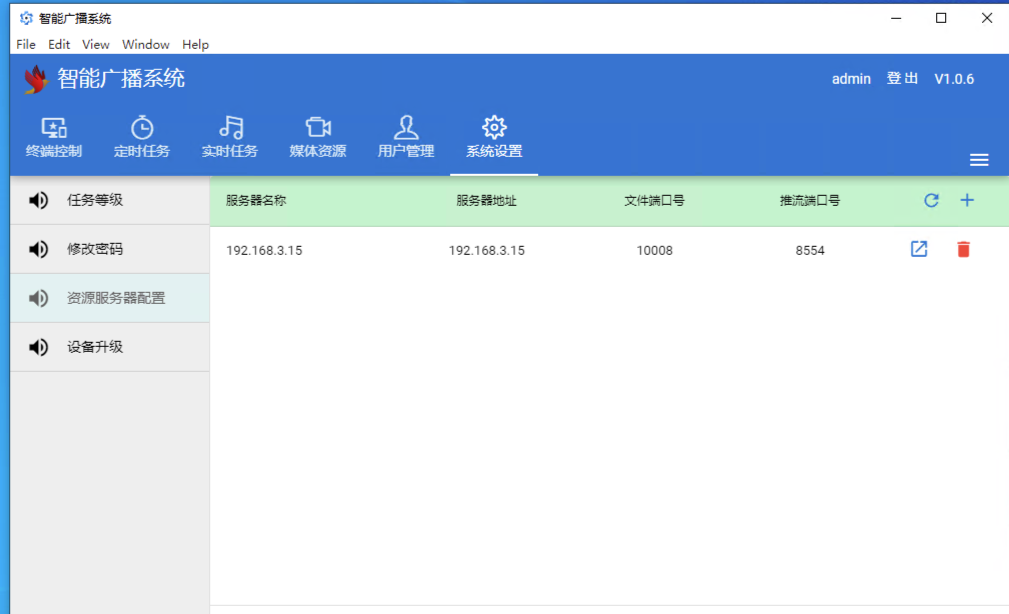

因为这是个服务器的管理端，所以进去后需要设定服务器所在的ip（）(这是文字转语音的服务端口，必须保持一致。)

（文件端口号默认10008 推流端口号默认8554）

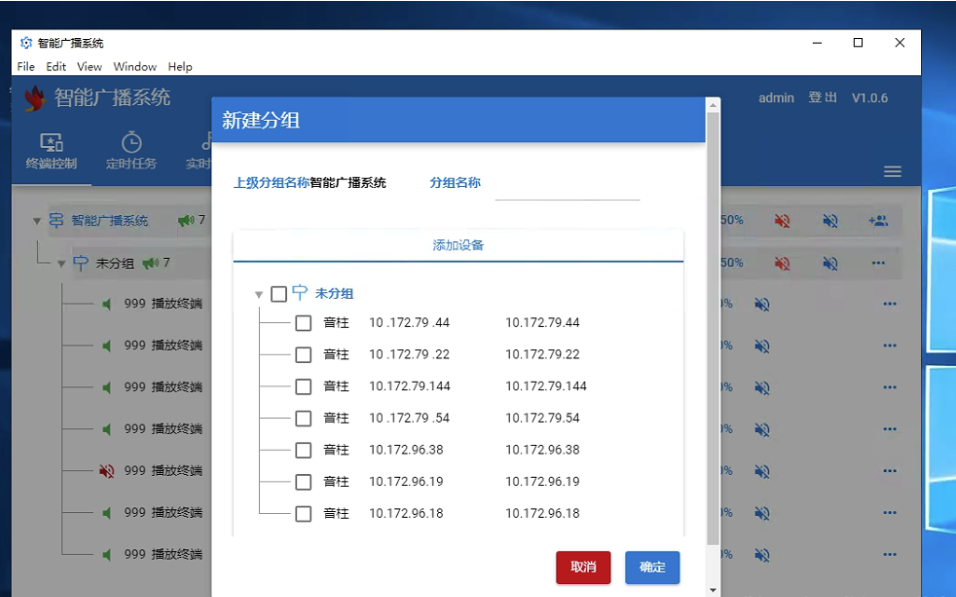

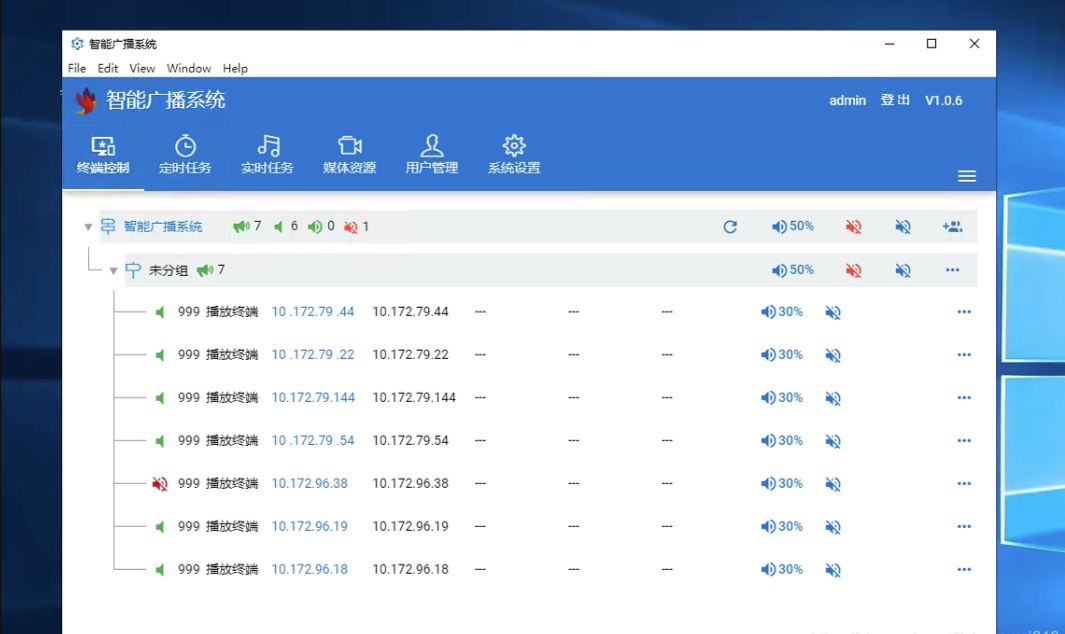

如果服务器ip 在设备中设定过，绑定的设备就会出现在列表中

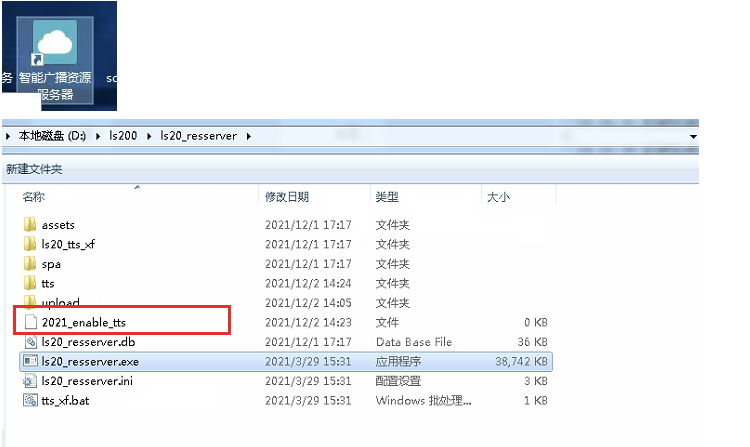

桌面这个图标点击右键，在根目录添加2021_enable_tts文件不要后缀。

这时，音响服务器算是配置完成了。

这时候就可以使用接口对接了

基本流程：1调用文字转语音服务得到mp3格式的文件2.带着文件请求音响服务并传参（指定播放的音响ip，或者音响组的名称）

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace ZK.HardWareBLL
{
    /// <summary>
    /// 菱声音响文字转语音
    /// </summary>
    public class LS20BLL
    {
        string type = "req";
        string app = "ls20";
        string uid = "";
      string wjyyPort = "10008";
        Models.TerminalM yx;
        Models.TerminalM yxfw;
        string[] sns;
        Common.IConfig.Myconfig myconfig = Common.IConfig.GetSetMyconfig;

        public LS20BLL(Models.TerminalM yxfw, Models.TerminalM yx)
        {
            this.yx = yx;
            this.yxfw = yxfw;
            InterfaceServer.LSwzzyybfServer.yxfwIp = yxfw.ip;
            Login();
            getAllDevices();
        }
        public Models.ReceiveDataBase<object> Login(string account = "admin", string passWord = "admin")
        {

            Models.LSwzzyybfM.loginReq loginReq = new Models.LSwzzyybfM.loginReq();
            loginReq.type = type;
            loginReq.app = app;
            loginReq.op = "login";
            loginReq.params1.name = account;
            loginReq.params1.password = passWord;
            loginReq.params1.vender = app;
            Models.LSwzzyybfM.loginRes loginRes = ZK.InterfaceServer.LSwzzyybfServer.login(loginReq);
            if (loginRes.params1.result != "0")
            {
                return Models.ReceiveDataBase<object>.SetFailRes("登录失败");
            }
            uid = loginRes.params1.uid;

            return Models.ReceiveDataBase<object>.SetSuccessRes("登录成功");
        }

        public Models.ReceiveDataBase<object> getAllDevices()
        {
            Models.LSwzzyybfM.getAllDevicesReq mm = new Models.LSwzzyybfM.getAllDevicesReq();
            mm.type = type;
            mm.app = app;
            mm.op = "getAllDevices";
            mm.params1.uid = uid;
            Models.LSwzzyybfM.getAllDevicesRes loginRes = ZK.InterfaceServer.LSwzzyybfServer.getAllDevices(mm);
            if (loginRes.params1.result != "0")
            {
                return Models.ReceiveDataBase<object>.SetFailRes("获取设备列表失败");
            }
            sns = loginRes.params1.devices.Where(p=>p.ip == this.yx.ip).Select(p => p.sn).ToArray();
            return Models.ReceiveDataBase<object>.SetSuccessRes();
        }

        public void DevPlayStop()
        {
            Models.LSwzzyybfM.devPlayStopReq devPlayStopReq = new Models.LSwzzyybfM.devPlayStopReq();
            devPlayStopReq.type = "req";
            devPlayStopReq.app = "ls20";
            devPlayStopReq.op = "devPlayStop";
            devPlayStopReq.params1.devices = sns;
            devPlayStopReq.params1.uid = uid;
            InterfaceServer.LSwzzyybfServer.devPlayStop(devPlayStopReq);
        }
        /// <summary>
        /// 发送信息给音响
        /// </summary>
        /// <param name="msg"></param>
        /// <param name="origin"></param>
        /// <param name="voice_name"></param>
        /// <param name="speed"></param>
        /// <param name="volume"></param>
        /// <param name="count"></param>
        /// <param name="vol"></param>
        /// <returns></returns>
        public Models.ReceiveDataBase<object> SendMessage(
            string msg

            )
        {
            try
            {
                if (sns != null && sns.Count() < 1)
                {
                    return Models.ReceiveDataBase<object>.SetFailRes("设备不能为空");
                }
                Models.LSwzzyybfM.tts_xf mm = new Models.LSwzzyybfM.tts_xf();
                mm.text = msg;
                mm.origin = "http://" + this.yxfw.ip + ":" + wjyyPort;
                mm.speed = myconfig.YXSPEED;
                mm.voice_name = "xiaoyan";//xiaoyan 女  xiaofeng 男
                mm.volume = "100";
                Models.LSwzzyybfM.tts_xfRes res = ZK.InterfaceServer.LSwzzyybfServer.tts_xf(mm);
                if (res.result != "0")
                {
                    return Models.ReceiveDataBase<object>.SetFailRes("语音转化失败");
                }
                //先暂停，在播放
                DevPlayStop();
                //播放
                Models.LSwzzyybfM.fileUrl fileUrl1 = new Models.LSwzzyybfM.fileUrl();
                fileUrl1.name = "name1";
                fileUrl1.uri = res.url;
                List<Models.LSwzzyybfM.fileUrl> fileUrls = new List<Models.LSwzzyybfM.fileUrl>();
                fileUrls.Add(fileUrl1);
                Models.LSwzzyybfM.playMusicReq playMusic = new Models.LSwzzyybfM.playMusicReq();
                playMusic.type = type;
                playMusic.app = app;
                playMusic.op = "playMusic";
                playMusic.params1.uid = uid;
                playMusic.params1.name = "task1";
                playMusic.params1.type = 5;
                playMusic.params1.devices = sns;
                playMusic.params1.level = 1000;
                playMusic.params1.leng = "0";
                playMusic.params1.count = Convert.ToInt32(myconfig.YXCOUNT);
                playMusic.params1.vol = Convert.ToInt32(myconfig.YXVOL);
                playMusic.params1.urls = fileUrls;
                Models.LSwzzyybfM.playMusicRes playMusic1 = ZK.InterfaceServer.LSwzzyybfServer.playMusic(playMusic);
                if (playMusic1.params1.result != "0")
                {
                    return Models.ReceiveDataBase<object>.SetFailRes("播放失败");
                }
                return Models.ReceiveDataBase<object>.SetSuccessRes("语音发送并播放成功");
            }
            catch (Exception ex)
            {
                Common.Log4.LogManage.WriteErr("播放音响文件时发生了异常:" + ex);
                return Models.ReceiveDataBase<object>.SetFailRes("播放音响文件时发生了异常");
            }
        }
    }
}

菱声模型

using Newtonsoft.Json;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace ZK.Models
{
    /// <summary>
    /// 菱声转语音的模型
    /// </summary>
    public class LSwzzyybfM
    {

        public class devPlayStopReqC
        {

            //用户id
            public string uid
            {
                get; set;
            }
            //设备的sn
            public string[] devices
            {
                get; set;
            }


        }

        public class devPlayStopReq : baseParams
        {
            public devPlayStopReq()
            {
                params1 = new devPlayStopReqC();
            }
            [JsonProperty("params")]
            public devPlayStopReqC params1
            {
                get; set;
            }

        }
        public class playMusicReq : baseParams
        {


            public class devPlayStopReq : baseParams
            {
                public devPlayStopReq()
                {
                    params1 = new devPlayStopReqC();
                }
                [JsonProperty("params")]
                public devPlayStopReqC params1
                {
                    get; set;
                }

            }




            public playMusicReq()
            {
                params1 = new playMusicReqC();
            }
            [JsonProperty("params")]
            public playMusicReqC params1
            {
                get; set;
            }

        }
        public class playMusicRes
        {
            public string app
            {
                get; set;
            }
            public string callid
            {
                get; set;
            }

            public string type
            {
                get; set;
            }
            [JsonProperty("params")]
            public playMusicResC params1
            {
                get; set;
            }
        }
        public class playMusicResC
        {
            public string result
            {
                get; set;
            }

        }
        public class playMusicReqC
        {
            //用户id
            public string uid
            {
                get; set;
            }
            //任务名称
            public string name
            {
                get; set;
            }

            public int type
            {
                get; set;
            }
            //设备的sn
            public string[] devices
            {
                get; set;
            }
            //级别，不知道啥意思
            public int level
            {
                get; set;
            }
            //播放时长
            public string leng
            {
                get; set;
            }
            //播放次数
            public int count
            {
                get; set;
            }
            //声音
            public int vol
            {
                get; set;
            }
            public List<fileUrl> urls
            {
                get; set;
            }

        }
        public class fileUrl

        {
            public string name
            {
                get; set;
            }
            public string uri
            {
                get; set;
            }
        }
        public class tts_xfRes
        {
            public string result
            {
                get; set;
            }
            public string url
            {
                get; set;
            }
            public string text
            {
                get; set;
            }

        }

        public class tts_xf
        {
            public string text
            {
                get; set;
            }
            public string voice_name
            {
                get; set;
            }
            public string speed
            {
                get; set;
            }
            public string volume
            {
                get; set;
            }
            public string origin
            {
                get; set;
            }
        }
        /// <summary>
        /// 设备信息
        /// </summary>
        public class device
        {
            public string ip
            {
                get; set;
            }
            public string level
            {
                get; set;
            }
            public string mute
            {
                get; set;
            }
            public string name
            {
                get; set;
            }
            public string num
            {
                get; set;
            }
            public string sid
            {
                get; set;
            }
            public string size
            {
                get; set;
            }
            public string sn
            {
                get; set;
            }
            public string status
            {
                get; set;
            }
            public string type
            {
                get; set;
            }
            public string version
            {
                get; set;
            }
            public string vol
            {
                get; set;
            }
        }
        public class loginParams
        {
            public string name
            {
                get; set;
            }
            public string password
            {
                get; set;
            }
            public string vender
            {
                get; set;
            }
        }
        public class baseParams
        {
            public string type
            {
                get; set;
            }
            public string app
            {
                get; set;
            }
            public string op
            {
                get; set;
            }
        }
        public class loginReq : baseParams
        {
            public loginReq()
            {
                params1 = new loginParams();
            }
            [JsonProperty("params")]
            public loginParams params1
            {
                get; set;
            }
        }
        public class getAllDevicesReqC
        {
            public string uid
            {
                get; set;
            }
        }
        public class getAllDevicesRes : baseParams
        {
            public getAllDevicesRes()
            {
                params1 = new getAllDevicesResC();
            }
            [JsonProperty("params")]
            public getAllDevicesResC params1
            {
                get; set;
            }
        }
        public class getAllDevicesResC
        {
            public List<device> devices
            {
                get; set;
            }
            public string result
            {
                get; set;
            }
        }
        public class getAllDevicesReq : baseParams
        {
            public getAllDevicesReq()
            {
                params1 = new getAllDevicesReqC();
            }

            [JsonProperty("params")]
            public getAllDevicesReqC params1
            {
                get; set;
            }
        }

        public class loginRes : baseParams
        {

            [JsonProperty("params")]
            public loginParamsRes params1
            {
                get; set;
            }
        }
        public class loginParamsRes
        {
            public string result
            {
                get; set;
            }
            public string type
            {
                get; set;
            }
            public string uid
            {
                get; set;
            }
        }
    }
}

接口

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using ZK.Common;
using ZK.Models;

namespace ZK.InterfaceServer
{
    public class LSwzzyybfServer
    {



        public static string yxfwIp = "192.168.1.188";
        public static string yxfwPort = "17808";
        public static string wjyyPort = "10008";
        //public static string url = "http://"+ yxfwIp + ":"+ yxfwPort + "/call";


        public static Models.LSwzzyybfM.loginRes login(Models.LSwzzyybfM.loginReq m)
        {
            string ret;
            try
            {
                ret = HttpClientUtil.doPostMethodToString("http://" + yxfwIp + ":" + yxfwPort + "/call", Newtonsoft.Json.JsonConvert.SerializeObject(m));
            }
            catch (Exception ex)
            {
                Common.Log4.LogManage.WriteErr("login " + ex.ToString());
                return null;
            }
            return Newtonsoft.Json.JsonConvert.DeserializeObject<LSwzzyybfM.loginRes>(ret);

        }
        public static Models.LSwzzyybfM.playMusicRes devPlayStop(Models.LSwzzyybfM.devPlayStopReq m)
        {
            string ret;
            try
            {
                ret = HttpClientUtil.doPostMethodToString("http://" + yxfwIp + ":" + yxfwPort + "/call", Newtonsoft.Json.JsonConvert.SerializeObject(m));
            }
            catch (Exception ex)
            {
                Common.Log4.LogManage.WriteErr("devPlayStop " + ex.ToString());
                return null;
            }
            return Newtonsoft.Json.JsonConvert.DeserializeObject<LSwzzyybfM.playMusicRes>(ret);

        }
        public static Models.LSwzzyybfM.getAllDevicesRes getAllDevices(Models.LSwzzyybfM.getAllDevicesReq m)
        {
            string ret;
            try
            {
                ret = HttpClientUtil.doPostMethodToString("http://" + yxfwIp + ":" + yxfwPort + "/call", Newtonsoft.Json.JsonConvert.SerializeObject(m));
            }
            catch (Exception ex)
            {
                Common.Log4.LogManage.WriteErr("getAllDevices " + ex.ToString());
                return null;
            }
            return Newtonsoft.Json.JsonConvert.DeserializeObject<LSwzzyybfM.getAllDevicesRes>(ret);

        }
        public static Models.LSwzzyybfM.playMusicRes playMusic(Models.LSwzzyybfM.playMusicReq m)
        {
            string ret;
            try
            {
                ret = HttpClientUtil.doPostMethodToString("http://" + yxfwIp + ":" + yxfwPort + "/call", Newtonsoft.Json.JsonConvert.SerializeObject(m));
            }
            catch (Exception ex)
            {
                Common.Log4.LogManage.WriteErr("playMusic " + ex.ToString());
                return null;
            }
            return Newtonsoft.Json.JsonConvert.DeserializeObject<LSwzzyybfM.playMusicRes>(ret);

        }

        public static Models.LSwzzyybfM.tts_xfRes tts_xf(Models.LSwzzyybfM.tts_xf m)
        {
            string ret;
            Dictionary<string, string> keyValuePairs = new Dictionary<string, string>();
            keyValuePairs.Add("origin", m.origin);
            keyValuePairs.Add("text", m.text);
            keyValuePairs.Add("voice_name", m.voice_name);
            keyValuePairs.Add("volume", m.volume);
            keyValuePairs.Add("speed", m.speed);
            string myUrl = InterfaceExecute.GetUrlNoBaseUrl("http://"+yxfwIp+":"+wjyyPort+"/tts_xf.multi", keyValuePairs);
            try
            {
                ret = HttpClientUtil.doGetMethodToString(myUrl);
            }
            catch (Exception ex)
            {
                Common.Log4.LogManage.WriteErr("tts_xf " + ex.ToString());
                return null;
            }
            return Newtonsoft.Json.JsonConvert.DeserializeObject<LSwzzyybfM.tts_xfRes>(ret);

        }
    }
}

使用方式

 LS20BLL lS20BLL;
  PageShow("音响服务初始化");
                    lS20BLL = new LS20BLL(terminalMs.Where(p => p.code == Convert.ToInt32(myconfig.YXFW)).FirstOrDefault(), terminalMs.Where(p => p.code == Convert.ToInt32(myconfig.YX)).FirstOrDefault());

   lS20BLL.SendMessage("称重成功，请下磅");

设备模型

  public class TerminalM
    {
      public int id;
        /// <summary>
        /// 名称
        /// </summary>
        public String name;

        /// <summary>
        /// 工作状态 1启用 0禁用
        /// </summary>
        public int? workState;

        /// <summary>
        /// 安装堆位
        /// </summary>
        public string local;

        /// <summary>
        /// 安装位置
        /// </summary>
        public string localDetail;

        /// <summary>
        /// 设备类型
        /// </summary>
        public string type;
     /// <summary>
     /// 1ip 2 串口
     /// </summary>
        public int? ipCom;
        /// <summary>
        /// 备注长度最大100
        /// </summary>
        public string remark;



        /// <summary>
        /// 端口
        /// </summary>
        public int? port;

        /// <summary>
        /// 登录设备的账号
        /// </summary>
        public string userName;

        /// <summary>
        /// 登录设备的密码
        /// </summary>
        public string password;

        /// <summary>
        /// Led宽度
        /// </summary>
        public int? width;

        /// <summary>
        /// Led高度
        /// </summary>
        public int? height;

        /// <summary>
        /// ip地址
        /// </summary>
        public string ip;
        /// <summary>
        /// com口
        /// </summary>
        public string com;

        /// <summary>
        /// 工控机位置位置
        /// </summary>
        public string position;

        /// <summary>
        /// code不能重复
        /// </summary>
        public int? code;
        public int? dataBits1;
        public int? baudRate1;

    }

如果在对接中音响只是嘟一声，证明电脑缺环境了，请安装vcruntime2015，我资源有。

更新记录：
1.2021-03-01 在播放前先停止正在播放的音频（不管有没有播放任务）
